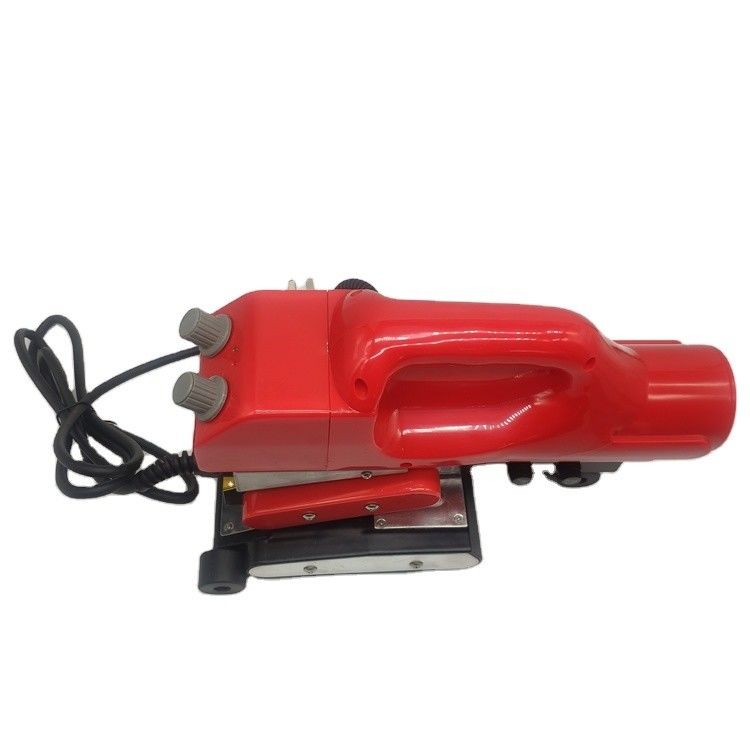

Automatic Geomembrane Overlap Welding Machine HMT1300 with High Working Efficiency

Product Details

Place of Origin: Shandong, China

Brand Name: tl

Payment & Shipping Terms

Price: $390-400/set

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Voltage:	110V/220V/380V/Customize
Frequency:	/	Welding Area:	Unlimited
Dimensions:	39.5 29 28cm	Usage:	Weld, PVC Welding
Warranty:	1 Year	After-sales Service Provided:	Online Support
Key Selling Points:	Flexible Manufacturing	Applicable Industries:	Home Use, Other
Weight (KG):	8.5 KG	Power (kW):	1.3
Marketing Type:	New Product 2020	Machinery Test Report:	Not Available
Video Outgoing-inspection:	Provided	Function:	PVC Wedling Machine
Color:	Red	Application:	Plastic Wedling
Use:	Welding PP PC PVC	MOQ:	1 Unit
Product Name:	HDPE Geomembrane Welding Machine	Name:	Geo-membrane Hot Wedge Welder
Feature:	High Working Efficiency	Welding Material:	PP HDPE PE PVC EVA

Condition:	New
Voltage:	110V/220V/380V/Customize
Frequency:	/
Welding Area:	Unlimited
Dimensions:	39.5 29 28cm
Usage:	Weld, PVC Welding
Warranty:	1 Year
After-sales Service Provided:	Online Support
Key Selling Points:	Flexible Manufacturing
Applicable Industries:	Home Use, Other
Weight (KG):	8.5 KG
Power (kW):	1.3
Marketing Type:	New Product 2020
Machinery Test Report:	Not Available
Video Outgoing-inspection:	Provided
Function:	PVC Wedling Machine
Color:	Red
Application:	Plastic Wedling
Use:	Welding PP PC PVC
MOQ:	1 Unit
Product Name:	HDPE Geomembrane Welding Machine
Name:	Geo-membrane Hot Wedge Welder
Feature:	High Working Efficiency
Welding Material:	PP HDPE PE PVC EVA

Automatic Geomembrane Overlap Welding Machine HMT1300 with High Working Efficiency

Application Scenario

Mainly used in water conservancy, dike slope protection, artificial lake, aquaculture, solid waste landfill, sewage treatment, petrochemical, tailings treatment, landscaping, planting roof and other anti-permeability geomemmembrane construction.

1.turn on the power switch, select a certain temperature and speed, take a few presses totest welding, because of the ambient temperature, the thickness of the material is not thesame, the welding selection temperature of the same material is different, in the case ofthe speed (about 2m/min) unchanged, the selection temperature from low to high temp--erature (about 250° C-350 C) slowly adjusted to determine the best welding effect.

2.Trim the edge of the material to be welded straight, face forward, overlap the leftbottom and right top.

3.after determining the temperature and speed, the material to be welded is insertedbetween the two presses, so that the fuselage is parallel to the edge of the mother village.and the press rod handle can be welded by itself.

4.when the material is welded to the end, the press rod handle is pressed down in timeso that the upper and lower press wheels are in a separate state.

5.the welded material and another material into a "T" lap welding method (Figure 1),the hot knife side of the bypass close to the welding mark diagonal cut length of about150mm

The motor drives the upper and lower pressure wheel to rotate through the gearbox and chain, and the sliding bracket drives the thermal vision to insert into the middle of the base material. At the same time, the pressure dance presses the pressure wheel to press the upper and lower heat increase base material together.

Packing Method

1.Heating system High power alloy heat wedge and unique heating design, high heating efficiency, good welding performance, long service life.

2.Package separately The package contains the machine, disassembly tools, spare fuses and instructions There are special packing boxes for welding machines, which are fixed internally to protect products and prevent wear during transportation 3.System of control Advanced feedback intelligent digital control system, temperature, speed through the LCD screen intuitive display, high control precision, strong protection function. 4.Regulation of pressure T-type cantilever head design and pressure adjustment mechanism ensure that the left and right welding pass pressure balance, uniform weld, welding pressure can be adjusted without breaking.

Factory Tour

1. The product quality is guaranteed, the production line is perfect, and there are strict sampling procedures.
2. Provide free samples.
3. Moq 1000㎡.
4. Welcome to customize orders.
5. Delivery time is generally 7-15 days, large orders can be negotiated.
6. Payment ways are Online Bank Payment, T/T,L/C,D/P D/A,PayPal,Western Union.
