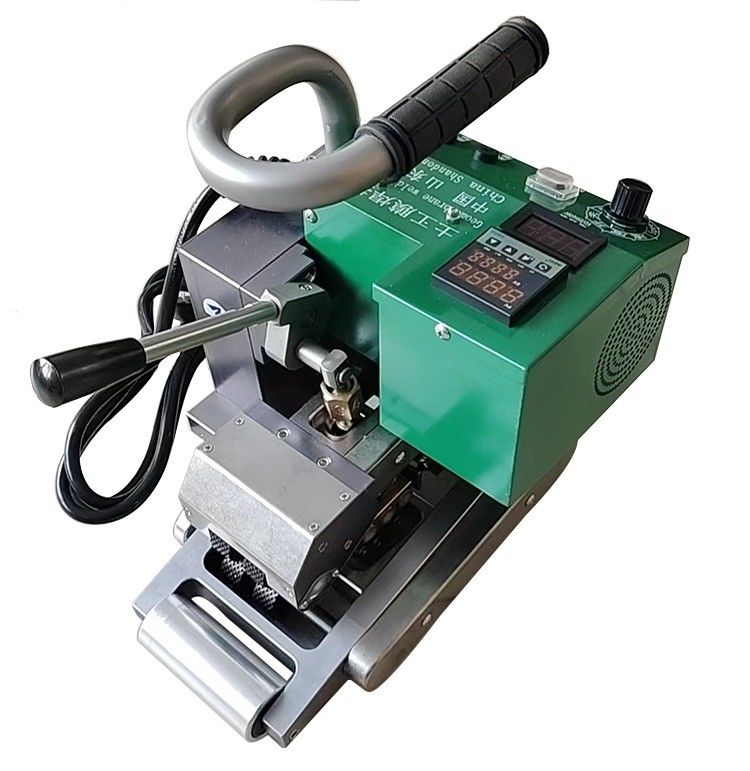

Plastic Welding Machine for High Temperature Welding of Landfill PND Liner Geomembrane

Product Details

Place of Origin: Shandong, China

Brand Name: zf

Payment & Shipping Terms

Price: $390-400/set

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Voltage:	220V
Frequency:	50HZ	Welding Area:	Will Be Provided Based On Your Requirements
Dimensions:	370330395mm	Usage:	Plastic Welding
Warranty:	1 Year	After-sales Service Provided:	Online Support
Key Selling Points:	Easy To Operate	Applicable Industries:	Building Material Shops, Farms, Home Use, Construction Works , Energy & Mining, Other
Weight (KG):	17 KG	Power (kW):	2.0
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided

Condition:	New
Voltage:	220V
Frequency:	50HZ
Welding Area:	Will Be Provided Based On Your Requirements
Dimensions:	370330395mm
Usage:	Plastic Welding
Warranty:	1 Year
After-sales Service Provided:	Online Support
Key Selling Points:	Easy To Operate
Applicable Industries:	Building Material Shops, Farms, Home Use, Construction Works , Energy & Mining, Other
Weight (KG):	17 KG
Power (kW):	2.0
Marketing Type:	New Product 2020
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided

Plastic Welding Machine for High Temperature Welding of Landfill PND Liner Geomembrane

Application Scenario

Mainly used in water conservancy, dike slope protection, artificial lake, aquaculture, solid waste landfill, sewage treatment, petrochemical, tailings treatment, landscaping, planting roof and other anti-permeability geomemmembrane construction.

Technical parameter

(1) Input voltage :220V

frequency :50HZ
(2) Heat sealing temperature :0-500°C
(3) Heat closing speed :0-6m/min
(4) Power :2000W
(5) Lap width: 120mml
(6) Welding width: 18mm*2 Intermediate cavity 12mm
(7) Thermal bonding strength :>85% base material (shear tensile strength)
(8) Welding material thickness :1.0mm-3.0mm
(9) Machine weight :13kg

1.turn on the power switch, select a certain temperature and speed, take a few presses totest welding, because of the ambient temperature, the thickness of the material is not thesame, the welding selection temperature of the same material is different, in the case ofthe speed (about 2m/min) unchanged, the selection temperature from low to high temp--erature (about 250° C-350 C) slowly adjusted to determine the best welding effect.

2.Trim the edge of the material to be welded straight, face forward, overlap the leftbottom and right top.

3.after determining the temperature and speed, the material to be welded is insertedbetween the two presses, so that the fuselage is parallel to the edge of the mother village.and the press rod handle can be welded by itself.

4.when the material is welded to the end, the press rod handle is pressed down in timeso that the upper and lower press wheels are in a separate state.

5.the welded material and another material into a "T" lap welding method (Figure 1),the hot knife side of the bypass close to the welding mark diagonal cut length of about150mm

1.Heating system High power alloy heat wedge and unique heating design, high heating efficiency, good welding performance, long service life.

2.Package separately The package contains the machine, disassembly tools, spare fuses and instructions There are special packing boxes for welding machines, which are fixed internally to protect products and prevent wear during transportation 3.System of control Advanced feedback intelligent digital control system, temperature, speed through the LCD screen intuitive display, high control precision, strong protection function. 4.Regulation of pressure T-type cantilever head design and pressure adjustment mechanism ensure that the left and right welding pass pressure balance, uniform weld, welding pressure can be adjusted without breaking.
